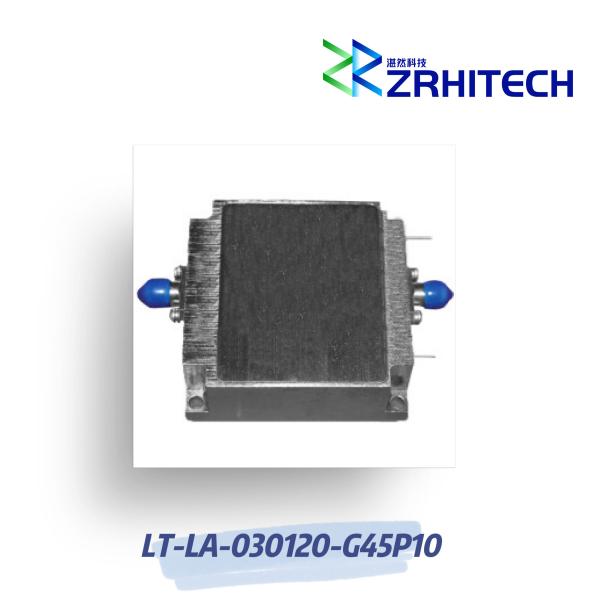

3 to 12 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain

Name: 3 to 12 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain
Brand: ZR Hi-tech
Price: 1 USD

Brand Name : ZR Hi-tech

Model Number : LT-LA-030120-G45P10

Place of Origin : CHINA

MOQ : 1

Payment Terms : D/A,D/P,T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Contact Now

3 to 12 GHz LT-LA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+70℃ Operating Temperature

· Small Signal Gain 45dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-LA-030120-G45P10 from ZR is a RF Amplifier with Frequency 3 to 12 GHz, Small Signal Gain 45 dB, Gain Flatness ±2.0 dB, Output Power 10dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-LA-030120-G45P10 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-LA-030120-G45P10
Configuration	Module with Connector
Frequency Range	3 to 12 GHz
Small Signal Gain	45 dB
Gain Flatness	±2.0 dB
Output Power	10 dBm
Input Power	10 dBm
VSWR	2.0:1
Power Supply	+12V / TBD mA
Operating Temperature	-40 to +70 ℃
Dimension	50x50x16 mm
Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):

3 to 12 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain

3 to 12 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain Images
